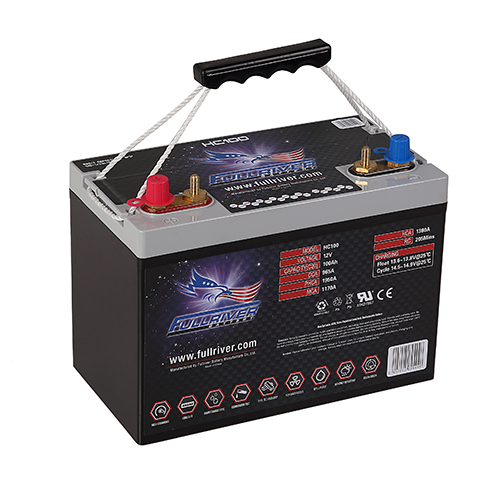

HC100
Automotive & Powersports AGM Batteries
HC SERIES BATTERY SPECS
Weight(Kg) | 32.2 Kg |
Dimensions(mm) | 307×169×214×237 mm |
Group Size | 27 |
Voltage | 12-Volt |
CCA | 965 A |
CA or MCA | 1170 A |
HCA | 1380 A |
PHCA | 1950 A |
Capacity @ 20hr Rate | 100 AH |
Reserve Capacity @ 25 Amps | 205 minutes |
Reserve Capacity @ 75 Amps | 40 minutes |
Internal Resistance(mΩ) | 2.50 mΩ |
Short Circuit Current(A) | 5000 A |
Case Type | ABS Plastic - |
Terminal Type | DT |
Terminal Torque(M8 Stud） | 53～71 in-lbs |
