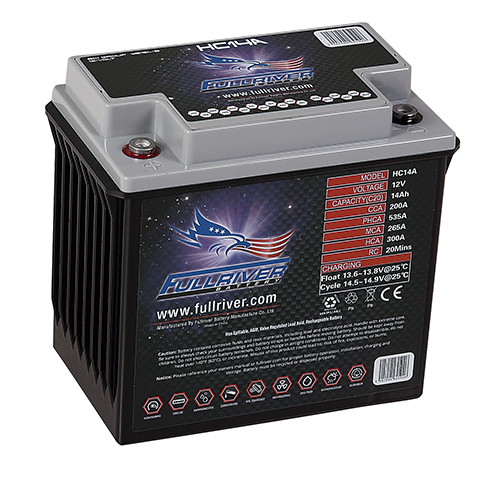

HC14A
Automotive & Powersports AGM Batteries
HC SERIES BATTERY SPECS
Weight(Kg) | 6.0 Kg |
Dimensions(mm) | 170.2×99.1×155×155 mm |
Group Size | BTX20L-BS |
Voltage | 12-Volt |
CCA | 200 A |
CA or MCA | 265 A |
HCA | 300 A |
PHCA | 535 A |
Capacity @ 20hr Rate | 14 AH |
Reserve Capacity @ 25 Amps | 20 minutes |
Reserve Capacity @ 75 Amps | - |
Internal Resistance(mΩ) | 12.30 mΩ |
Short Circuit Current(A) | 1000 A |
Case Type | ABS Plastic - |
Terminal Type | M6 |
Terminal Torque | 40～55 in-lbs |
