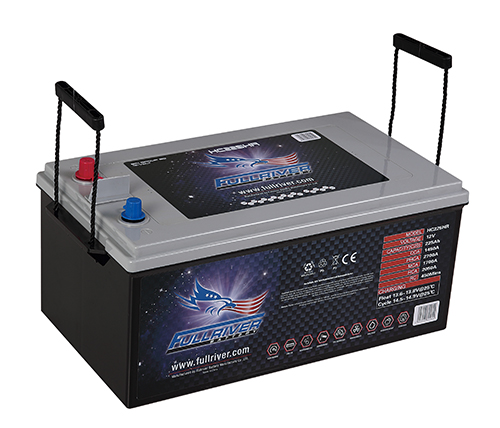

HC225
Automotive & Powersports AGM Batteries
HC SERIES BATTERY SPECS
Weight(Kg) | 71.2 Kg |
Dimensions(mm) | 517×274×218×243 mm |
Group Size | 8D |
Voltage | 12-Volt |
CCA | 1450 A |
CA or MCA | 1700 A |
HCA | 2000 A |
PHCA | 2400 A |
Capacity @ 20hr Rate | 225 AH |
Reserve Capacity @ 25 Amps | 450 minutes |
Reserve Capacity @ 75 Amps | 115 minutes |
Internal Resistance(mΩ) | 3.50 mΩ |
Short Circuit Current(A) | 3616 A |
Case Type | ABS Plastic - |
Terminal Type | AP |
Terminal Torque | 50～70 in-lbs |
