DC140-12
Deep-Cycle AGM Batteries
DC SERIES BATTERY SPECS
Weight(Kg) | 43.0 Kg |
Dimensions(mm) | 341×172×264×283 mm |
Group Size | DIN |
Voltage | 12-Volt |
CCA | 795 A |
CA or MCA | 950 A |
Capacity @ 5hr Rate | 115.0 AH |
Capacity @ 20hr Rate | 140.0 AH |
Capacity @ 72hr Rate | 148.0 AH |
Capacity @ 100hr Rate | 154.0 AH |
Reserve Capacity @ 25 Amps | 260 minutes |
Reserve Capacity @ 75 Amps | 62 minutes |
Internal Resistance(mΩ) | 3.30 mΩ |
Case Type | ABS Plastic - |
Terminal Type | AP |

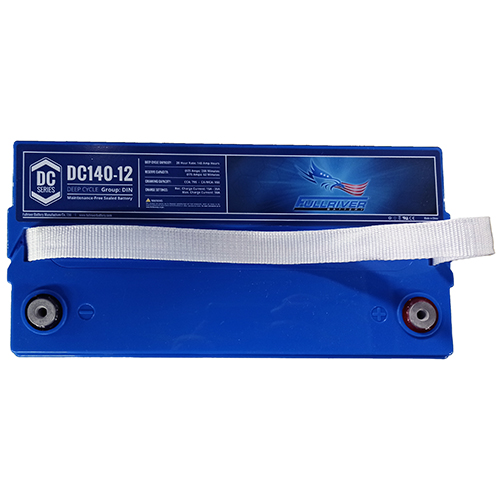

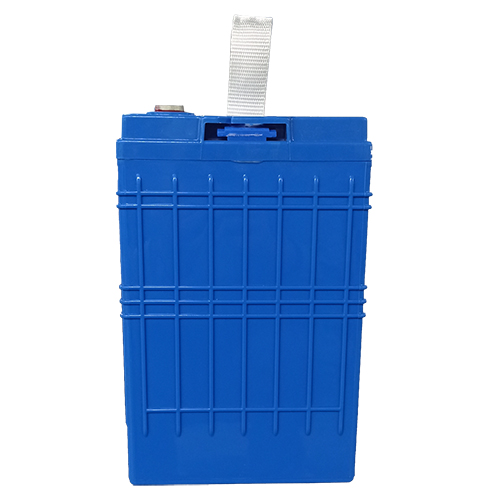

PRODUCT GALLERY
