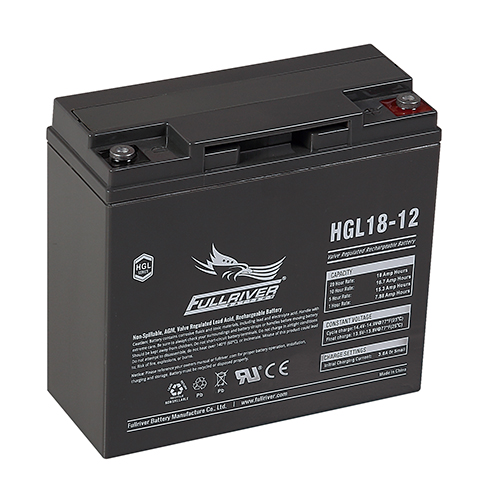

HGL18-12
General Purpose AGM Batteries
HGL SERIES BATTERY SPECS
Weight(Kg) | 5.50 Kg |
Dimensions(mm) | 181×77×167×167 mm |
Voltage | 12-Volt |
Capacity @ 1hr Rate | 10.8 AH |
Capacity @ 3hr Rate | 13.5 AH |
Capacity @ 5hr Rate | 15.3 AH |
Capacity @ 10hr Rate | 16.7 AH |
Capacity @ 20hr Rate | 18.0 AH |
Grid alloy | Calcium / Tin lead alloy |
Plates | Flat Pasted |
Separator | Absorbant Glass Mat |
Active material | Very high purity lead |
Case Type | ABS Plastic - |
Terminal Type | M5 |
Terminal Torque | 20～30 In-lbs |
Maximum Charge Current (A) | 20% of C20 |
Internal Resistance(mΩ) | 14.00 mΩ |
Cyclic Charge voltage | 2.40-2.45VPC （20-25°C） |
Float Charge voltage | 2.25-2.30VPC （20-25°C） |
